Multistage Pumps

Multistage horizontal and vertical high pressure pumps in segmental type design with many variants for clean and lightly polluted liquids. Main applications are booster systems, irrigation systems, boiler feed and condensate systems, washing plants, filter technique, water treatment and hardening systems. By means of auxiliary NPSH stages NPSH-values up to 0.5m are being achieved.

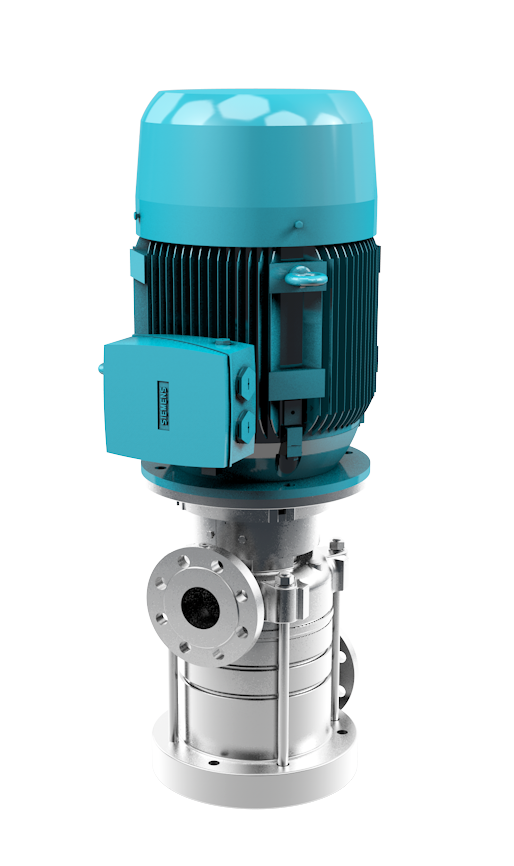

  • LBU /VBU /NHP /Z series
    LBU /VBU /NHP /Z series
  • NHE406B
  • LB
  • CV10-16
  • VB


◇High energy-efficiency
Low velocity of flow
Optimized impeller approach flow
Low internal friction losses
Optimized head per stage
◇Easy installation
Modular construction system for customized solutions
Optional flange positions

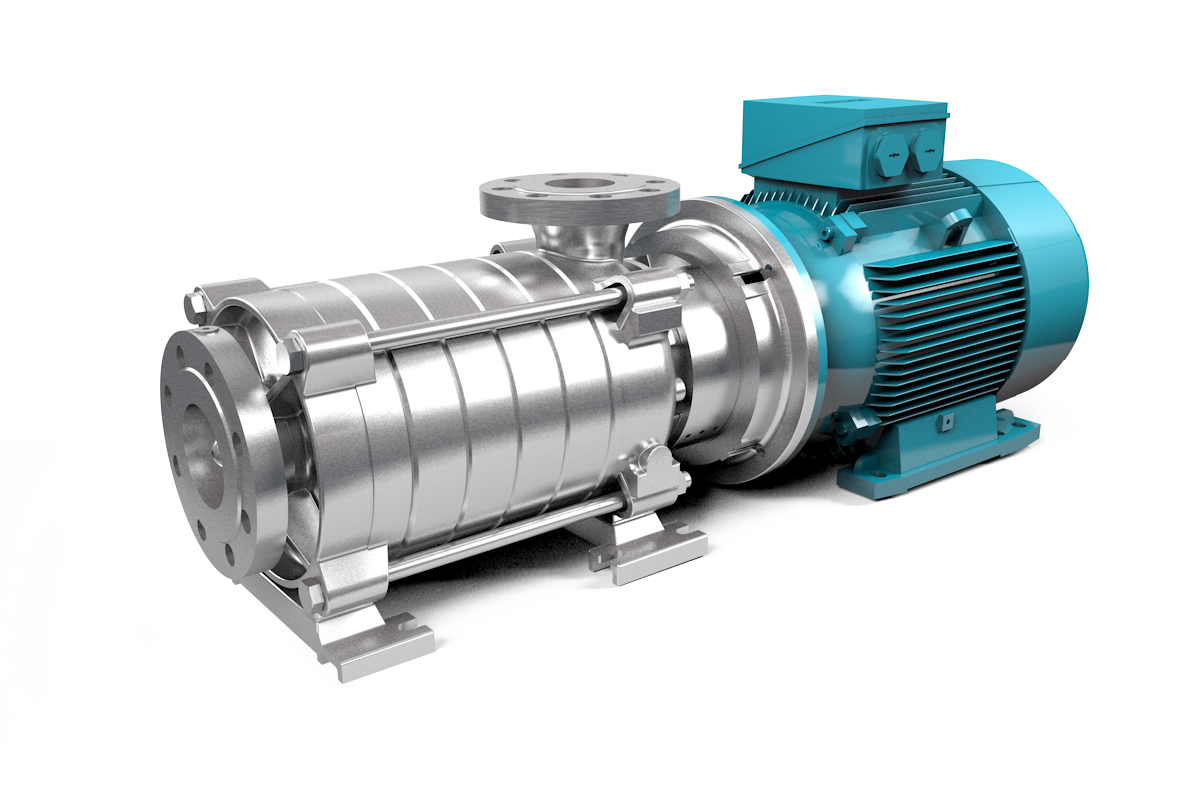

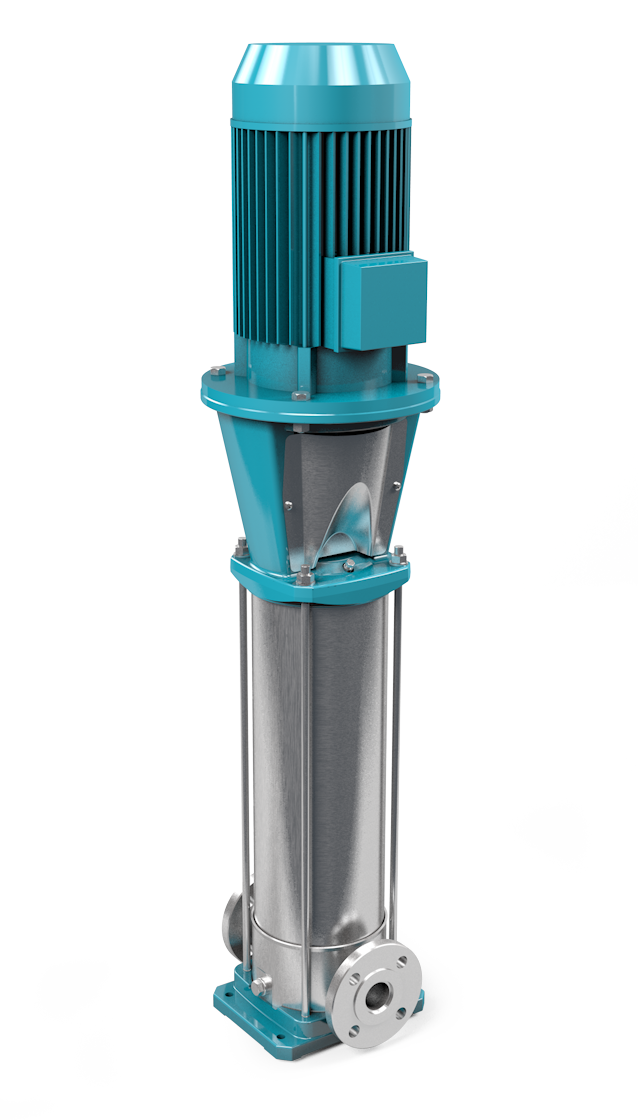

Horizontal or vertical design
Bloc-or bedplate design
◇Easy maintenance
◇Technical superiority
Open impellers without axial thrust or balanced closed impellers
Compensation of radial forces by means Of diffuser devices in the annular casing
NPSH inducer stages
NPSH inducer stages
Partial gas supply

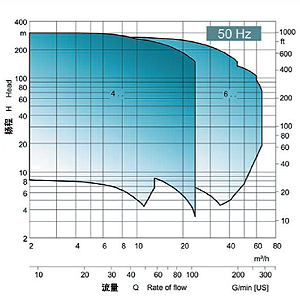

Wide performance curve characteristics
Flat or steep characteristic curves
Excellent control mode
Operating pressure up to 64bar

Temperature -60℃ up to +220℃

Viscosity up to 115 mm2/s
